SFigure 4
Anna Joachimbauer
2024-10-02
Last updated: 2026-03-06
Checks: 7 0
Knit directory: Serology-Analysis/
This reproducible R Markdown analysis was created with workflowr (version 1.7.2). The Checks tab describes the reproducibility checks that were applied when the results were created. The Past versions tab lists the development history.
Great! Since the R Markdown file has been committed to the Git repository, you know the exact version of the code that produced these results.
Great job! The global environment was empty. Objects defined in the global environment can affect the analysis in your R Markdown file in unknown ways. For reproduciblity it’s best to always run the code in an empty environment.
The command set.seed(20260121) was run prior to running
the code in the R Markdown file. Setting a seed ensures that any results
that rely on randomness, e.g. subsampling or permutations, are
reproducible.
Great job! Recording the operating system, R version, and package versions is critical for reproducibility.
Nice! There were no cached chunks for this analysis, so you can be confident that you successfully produced the results during this run.
Great job! Using relative paths to the files within your workflowr project makes it easier to run your code on other machines.
Great! You are using Git for version control. Tracking code development and connecting the code version to the results is critical for reproducibility.
The results in this page were generated with repository version 505a6d7. See the Past versions tab to see a history of the changes made to the R Markdown and HTML files.
Note that you need to be careful to ensure that all relevant files for
the analysis have been committed to Git prior to generating the results
(you can use wflow_publish or
wflow_git_commit). workflowr only checks the R Markdown
file, but you know if there are other scripts or data files that it
depends on. Below is the status of the Git repository when the results
were generated:
Ignored files:
Ignored: .Rproj.user/F3CE211A/bibliography-index/
Ignored: .Rproj.user/F3CE211A/ctx/
Ignored: .Rproj.user/F3CE211A/explorer-cache/
Ignored: .Rproj.user/F3CE211A/presentation/
Ignored: .Rproj.user/F3CE211A/profiles-cache/
Ignored: .Rproj.user/F3CE211A/sources/
Ignored: .Rproj.user/F3CE211A/tutorial/
Ignored: .Rproj.user/F3CE211A/unsaved-notebooks/
Ignored: .Rproj.user/F3CE211A/viewer-cache/
Ignored: .Rproj.user/shared/
Ignored: data/
Unstaged changes:
Modified: .Rproj.user/F3CE211A/pcs/windowlayoutstate.pper
Deleted: analysis/Panel_corr_ntprobnp_lum.pdf
Deleted: analysis/SFigure 4.Rmd
Note that any generated files, e.g. HTML, png, CSS, etc., are not included in this status report because it is ok for generated content to have uncommitted changes.
These are the previous versions of the repository in which changes were
made to the R Markdown (analysis/SFigure-4.Rmd) and HTML
(docs/SFigure-4.html) files. If you’ve configured a remote
Git repository (see ?wflow_git_remote), click on the
hyperlinks in the table below to view the files as they were in that
past version.
| File | Version | Author | Date | Message |
|---|---|---|---|---|
| Rmd | 505a6d7 | anjo1995 | 2026-03-06 | Figure 4-5 |
| html | 505a6d7 | anjo1995 | 2026-03-06 | Figure 4-5 |
| Rmd | 4c1f400 | anjo1995 | 2026-03-06 | Figure 4 |
| html | 4c1f400 | anjo1995 | 2026-03-06 | Figure 4 |
Load Packages
suppressPackageStartupMessages({
# Data handling
library(tidyverse)
library(data.table)
library(magrittr)
library(janitor)
library(here)
library(scales)
library(table1)
library(tableone)
library(flextable)
library(gtsummary)
library(openxlsx)
library(writexl)
library(readxl)
# Visualization
library(ggplot2)
library(ggpubr)
library(ggrepel)
library(ggbeeswarm)
library(ggcorrplot)
library(corrplot)
library(pheatmap)
library(ComplexHeatmap)
library(circlize)
library(RColorBrewer)
library(EnhancedVolcano)
library(plotly)
library(patchwork)
library(cowplot)
library(gridExtra)
library(grid)
library(ggpattern)
# Statistics
library(rstatix)
library(multcomp)
library(car)
library(Hmisc)
library(MASS)
library(MuMIn)
library(broom)
library(glmnet)
library(logistf)
library(drc)
library(caret)
library(mice)
library(pROC)
# Clustering
library(randomForest)
library(factoextra)
library(cluster)
library(Rtsne)
library(umap)
library(dbscan)
library(kernlab)
library(Seurat)
# Others
library(ImmunoLogic)
})Define Filepath
basedir <- here()Read Data (Healthy, Cohort 1, Cohort 2)
# Import BMP4 Data
table_bmp4_healthy <- openxlsx::read.xlsx(file.path(basedir, "data", "Table_BMP4_Healthy.xlsx"))
table_bmp4_cohort1 <- openxlsx::read.xlsx(file.path(basedir, "data", "Table_BMP4_Cohort1.xlsx")) %>%
mutate(Cohort = "Myocarditis")
table_bmp4_cohort2 <- openxlsx::read.xlsx(file.path(basedir, "data", "Table_BMP4_Cohort2.xlsx")) %>%
mutate(Cohort = "Myocarditis")
table_bmp4_acm <- openxlsx::read.xlsx(file.path(basedir, "data", "Table_BMP4_ACM.xlsx")) %>%
mutate (Cohort = "ACM")
# Combine Tables
table_bmp4_myo_acm <- rbind(table_bmp4_cohort1, table_bmp4_cohort2, table_bmp4_acm)
# Import Serology Data
table_clindat_healthy <- openxlsx::read.xlsx(file.path(basedir, "data", "Table_Serology_Healthy.xlsx")) %>%
dplyr::select(Study_ID, Trop_I, NTproBNP, CRP)
table_clindat_cohort1 <- openxlsx::read.xlsx(file.path(basedir, "data", "Table_ClinicalData_Cohort1.xlsx")) %>%
dplyr::select(Study_ID, NTproBNP, LV_EF, Trop_I, CRP)
table_clindat_cohort2 <- openxlsx::read.xlsx(file.path(basedir, "data", "Table_ClinicalData_Cohort2.xlsx")) %>%
dplyr::select(Study_ID, NTproBNP, LV_EF, Trop_I, CRP)
table_clindat_acm <- openxlsx::read.xlsx(file.path(basedir, "data", "Table_Serology_ACM.xlsx")) %>%
dplyr::select(Study_ID, Trop_I, NTproBNP, CRP)
# Add LVEF ACM
table_lvef_acm <- openxlsx::read.xlsx(file.path(basedir, "data", "Table_ClinicalData_ACM.xlsx")) %>%
dplyr::select(Study_ID, LV_EF)
table_clindat_acm_01 <- table_clindat_acm %>%
left_join(table_lvef_acm, by = "Study_ID")
# Combine tables
table_clindat_myo_acm <- rbind(table_clindat_cohort1, table_clindat_cohort2, table_clindat_acm_01)
# Import Luminex Data
table_lum_healthy <- openxlsx::read.xlsx(file.path(basedir, "data", "Table_Lum_Healthy_DL_corr.xlsx")) %>%
dplyr::select(-Cohort)
table_lum_cohort1 <- openxlsx::read.xlsx(file.path(basedir, "data", "Table_Lum_Cohort1_DL_corr.xlsx")) %>%
dplyr::select(-Cohort)
table_lum_cohort2 <- openxlsx::read.xlsx(file.path(basedir, "data", "Table_Lum_Cohort2_DL_corr.xlsx")) %>%
dplyr::select(-Cohort)
table_lum_acm <- openxlsx::read.xlsx(file.path(basedir, "data", "Table_Lum_ACM_DL_corr.xlsx")) %>%
dplyr::select(-Cohort)
# Combine tables
table_lum_myo_acm <- rbind(table_lum_cohort1, table_lum_cohort2, table_lum_acm)
# Combine tables
table_all_myo_acm <- table_bmp4_myo_acm %>%
left_join(table_lum_myo_acm, by = "Study_ID") %>%
left_join(table_clindat_myo_acm, by = "Study_ID")
table_all_healthy <- table_bmp4_healthy %>%
left_join(table_lum_healthy, by = "Study_ID") %>%
left_join(table_clindat_healthy, by = "Study_ID")Multiple Imputation AM Cohort (incl. LVEF)
# Impute missing values
imputed_data <- mice(table_all_myo_acm, m = 5, method = 'pmm', maxit = 5, seed = 1234)
iter imp variable
1 1 Grem_1 Grem_2 NTproBNP LV_EF Trop_I
1 2 Grem_1 Grem_2 NTproBNP LV_EF Trop_I
1 3 Grem_1 Grem_2 NTproBNP LV_EF Trop_I
1 4 Grem_1 Grem_2 NTproBNP LV_EF Trop_I
1 5 Grem_1 Grem_2 NTproBNP LV_EF Trop_I
2 1 Grem_1 Grem_2 NTproBNP LV_EF Trop_I
2 2 Grem_1 Grem_2 NTproBNP LV_EF Trop_I
2 3 Grem_1 Grem_2 NTproBNP LV_EF Trop_I
2 4 Grem_1 Grem_2 NTproBNP LV_EF Trop_I
2 5 Grem_1 Grem_2 NTproBNP LV_EF Trop_I
3 1 Grem_1 Grem_2 NTproBNP LV_EF Trop_I
3 2 Grem_1 Grem_2 NTproBNP LV_EF Trop_I
3 3 Grem_1 Grem_2 NTproBNP LV_EF Trop_I
3 4 Grem_1 Grem_2 NTproBNP LV_EF Trop_I
3 5 Grem_1 Grem_2 NTproBNP LV_EF Trop_I
4 1 Grem_1 Grem_2 NTproBNP LV_EF Trop_I
4 2 Grem_1 Grem_2 NTproBNP LV_EF Trop_I
4 3 Grem_1 Grem_2 NTproBNP LV_EF Trop_I
4 4 Grem_1 Grem_2 NTproBNP LV_EF Trop_I
4 5 Grem_1 Grem_2 NTproBNP LV_EF Trop_I
5 1 Grem_1 Grem_2 NTproBNP LV_EF Trop_I
5 2 Grem_1 Grem_2 NTproBNP LV_EF Trop_I
5 3 Grem_1 Grem_2 NTproBNP LV_EF Trop_I
5 4 Grem_1 Grem_2 NTproBNP LV_EF Trop_I

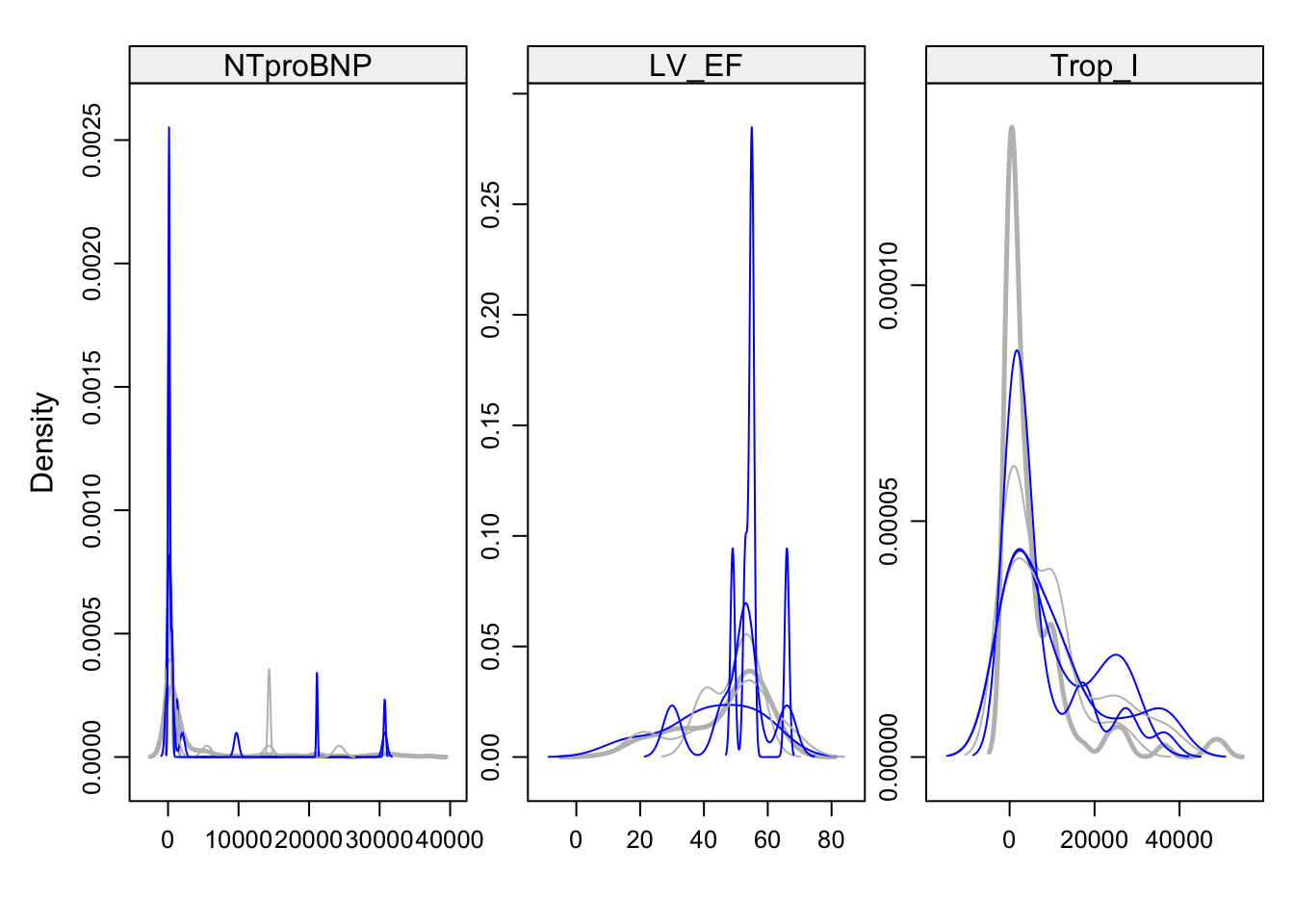

5 5 Grem_1 Grem_2 NTproBNP LV_EF Trop_I# Check the imputed data
densityplot(imputed_data, col=c("grey", "blue"), pch = c(1, 20))
| Version | Author | Date |
|---|---|---|
| 4c1f400 | anjo1995 | 2026-03-06 |
# Create a data set with the observed and completed data
table_all_myo_imp <- complete(imputed_data, 1)
# Combine all data tables
table_all_myo_acm_healthy <- bind_rows(table_all_myo_acm %>% dplyr::select(-LV_EF),

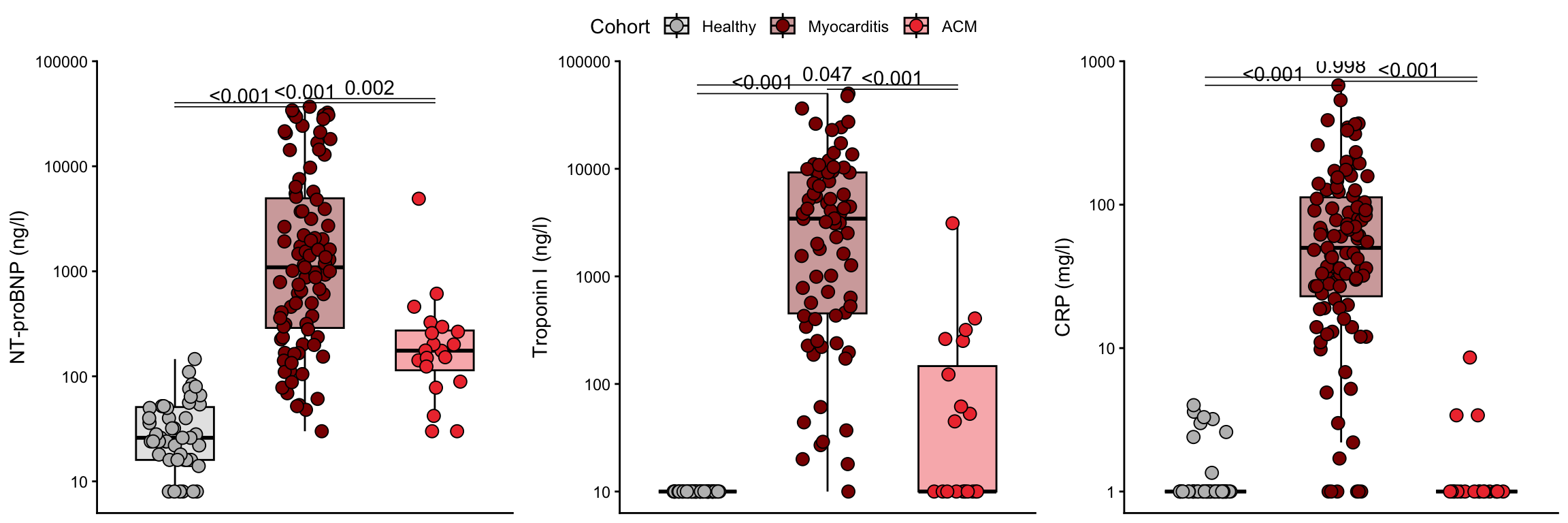

table_all_healthy)Routine Blood Parameter between AM and ACM Cohort
# Adjust to assay limits
table_all_myo_acm_healthy <- table_all_myo_acm_healthy %>%
mutate(CRP = if_else(CRP < 1, 1, CRP),
Trop_I = if_else(Trop_I < 10, 10, Trop_I),
NTproBNP = if_else(NTproBNP < 8, 8, NTproBNP))
# Prepare data table
table_para <- table_all_myo_acm_healthy %>%
pivot_longer(cols = where(is.numeric),
names_to = "Parameter",
values_to = "Parameter_val")
# Set Cohort order
table_para$Cohort <- factor(table_para$Cohort,
levels = c("Healthy", "Myocarditis", "ACM"))
# Calculate Stats
# Kruskal–Wallis test
stat.kruskal <- table_para %>%
group_by(Parameter) %>%
kruskal_test(Parameter_val ~ Cohort) %>%
add_significance()
# Dunn post hoc test
stat.dunn <- table_para %>%
group_by(Parameter) %>%
dunn_test(Parameter_val ~ Cohort, p.adjust.method = "BH")
# Calculate max y for positioning p-values
max_y <- table_para %>%
group_by(Parameter) %>%
summarise(max_val = max(Parameter_val, na.rm = TRUE))
# Get min value per parameter (for y limits)
min_y <- table_para %>%
group_by(Parameter) %>%
summarise(min_val = min(Parameter_val, na.rm = TRUE))
# Combine with max_y info for plotting
stat.test <- stat.dunn %>%
left_join(max_y, by = "Parameter") %>%
mutate(y.position = max_val * 1) %>%
group_by(Parameter) %>%
arrange(p.adj)
# Create the loop to create a plot
param <- c("NTproBNP", "Trop_I", "CRP")
# Create x-axis label for loop
biomarker_labels <- c("NT-proBNP (ng/l)", "Troponin I (ng/l)", "CRP (mg/l)")
names(biomarker_labels) <- param
# Create a list for all plots created in the loop
plots_list <- list()
for (param in param)
{
# Filter for the data
temp_data <- table_para %>%
filter(Parameter == param)
temp_stat_test <- stat.test %>%
filter(Parameter == param) %>%
mutate(p_adj_label = ifelse(p.adj < 0.001, "<0.001", sprintf("%.3f", p.adj)))
# define y axis margins
max_y <- max(temp_stat_test$max_val, na.rm = TRUE) * 1.1
max_log10_limit <- 10^(ceiling(log10(max_y)))
min_y_limit <- min_y %>%
filter(Parameter == param) %>%
summarise(min_val = min(min_val, na.rm = TRUE) * 0.9) %>%
pull(min_val)
min_log10_limit <- 10^(floor(log10(min_y_limit)))
y_breaks <- 10^(seq(log10(min_log10_limit), log10(max_log10_limit), by = 1))
# Plot Boxplot
plot <- ggplot(temp_data, aes(x = Cohort, y = Parameter_val)) +
geom_boxplot(aes(fill = Cohort), color = "black", outlier.shape = NA,
width = 0.6, alpha = 0.4) +
geom_point(shape = 21, size = 3, color = "black", aes(fill = Cohort),
position = position_jitter(width = 0.2, height = 0)) +
scale_y_log10(labels = function(x) format(x, scientific = FALSE, trim = TRUE),
limits = c(NA, max_log10_limit),
expand = expansion(mult = c(0.05, 0), add = c(0,0)), breaks = y_breaks) +
scale_fill_manual(values = c("Myocarditis" = "darkred",
"ACM" = "brown2",
"Healthy" = "grey")) +
stat_pvalue_manual(temp_stat_test, label = "p_adj_label",
y.position = log10(temp_stat_test$y.position),
step.increase = 0.01, tip.length = 0) +
labs(x = NULL, y = biomarker_labels[[param]]) +
theme_classic() +
theme(axis.title.x = element_blank(),
axis.text.x = element_blank(),
axis.ticks.x = element_blank(),
legend.position = "none")
plots_list[[param]] <- plot
}
# Combine plots to a panel
panel <- ggarrange(plotlist = c(plots_list),
ncol = 3, nrow = 1,
common.legend = TRUE)
print(panel)
| Version | Author | Date |
|---|---|---|
| 505a6d7 | anjo1995 | 2026-03-06 |

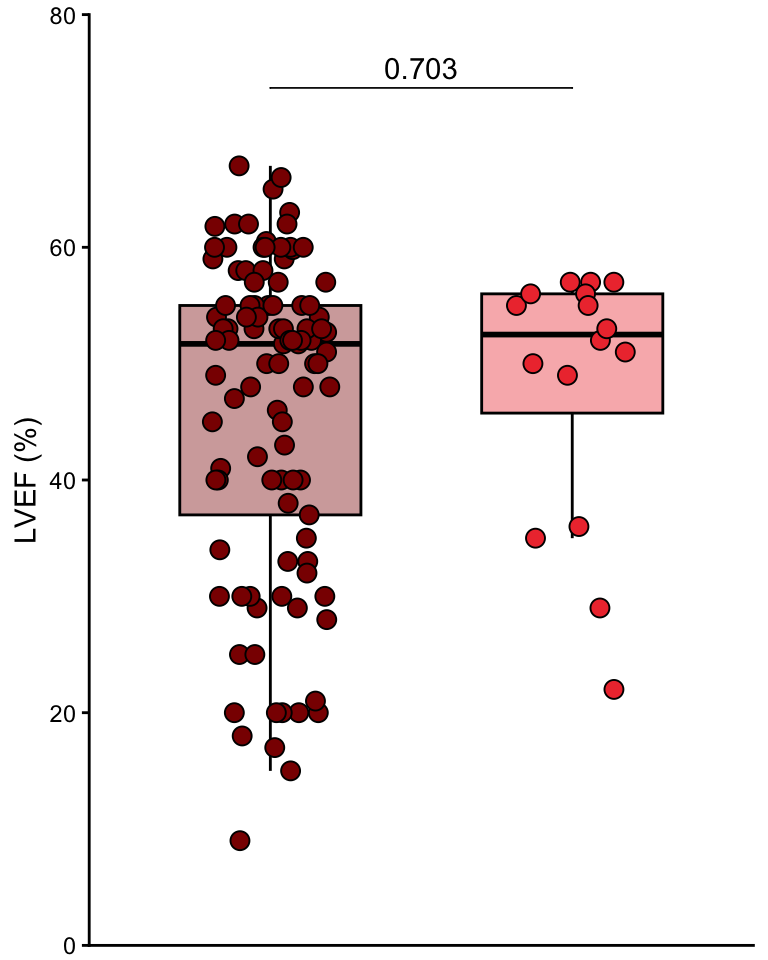

LVEF between AM and ACM Cohort
# Set Cohort order
table_imp_lvef <- table_all_myo_acm %>%
mutate(Cohort = factor(Cohort, levels = c("Myocarditis", "ACM")))
# Prepare data table
table_para <- table_imp_lvef %>%
pivot_longer(cols = where(is.numeric),
names_to = "Parameter",
values_to = "Parameter_val")
# Calculate Stats
# Wilcox Test
stat.test <- table_para %>%
group_by(Parameter) %>%
wilcox_test(Parameter_val ~ Cohort) %>%
add_significance() %>%
mutate(p_adj = p.adjust(p, method = "BH"))
# Get max value per parameter (for p-value position)
max_y <- table_para %>%
group_by(Parameter) %>%
summarise(max_val = max(Parameter_val, na.rm = TRUE))
# Get min value per parameter (for y limits)
min_y <- table_para %>%
group_by(Parameter) %>%
summarise(min_val = min(Parameter_val, na.rm = TRUE))
# Combine with max_y info for plotting
stat.test <- stat.test %>%
left_join(max_y, by = "Parameter") %>%
left_join(min_y, by = "Parameter") %>%
mutate(y.position = max_val * 1.1)
# Create Plot LVEF
# Filter for the data
temp_data <- table_para %>%
filter(Parameter == "LV_EF")
temp_stat_test <- stat.test %>%
filter(Parameter == "LV_EF") %>%
mutate(p_adj_label = ifelse(p_adj < 0.001, "<0.001", sprintf("%.3f", p_adj)))
plot_lvef <- ggplot(temp_data, aes(x = Cohort, y = Parameter_val)) +
geom_boxplot(aes(fill = Cohort), color = "black", outlier.shape = NA,
width = 0.6, alpha = 0.4) +
geom_point(shape = 21, size = 3, color = "black", aes(fill = Cohort),
position = position_jitter(width = 0.2, height = 0)) +
scale_y_continuous(limits = c(0, 80), expand = c(0, 0)) +
scale_fill_manual(values = c("Myocarditis" = "darkred",
"ACM" = "brown2")) +
stat_pvalue_manual(temp_stat_test, label = "p_adj_label",
y.position = temp_stat_test$y.position,
step.increase = 0.01, tip.length = 0) +
labs(x = NULL, y = "LVEF (%)") +
theme_classic() +
theme(axis.title.x = element_blank(),
axis.text.x = element_blank(),
axis.ticks.x = element_blank(),
legend.position = "none")
print(plot_lvef)
Abundance Bubble Plot
# Subset Data
table_lum_myo <- rbind(table_lum_cohort1, table_lum_cohort2) %>%
mutate(Cohort = "Myocarditis")
table_lum <- bind_rows(table_lum_myo,
table_lum_healthy %>% mutate (Cohort = "Healthy"),
table_lum_acm %>% mutate (Cohort = "ACM"))
# Set rownames
rownames(table_lum) <- table_lum$Study_ID
# Prepare data table for bubble plot
# Create the loop vector
parameters <- names(which(sapply(table_lum, is.numeric) == TRUE))
# Prepare data table
table_para <- table_lum %>%
pivot_longer(cols = where(is.numeric),
names_to = "Parameter",
values_to = "Parameter_val")
# Calculate mean expression for the healthy cohort
healthy_stats <- table_para %>%
filter(Cohort == "Healthy") %>%
group_by(Parameter) %>%
summarise(mean_expr_healthy = mean(Parameter_val, na.rm = TRUE))
# Calculate mean expression for AM cohort & calcuate FC
cohorts_stats <- table_para %>%
filter(Cohort != "Healthy") %>%
group_by(Cohort, Parameter) %>%
summarise(mean_expr_myo = mean(Parameter_val, na.rm = TRUE)) %>%
left_join(healthy_stats, by = "Parameter") %>%
mutate(log2_fc = log2(mean_expr_myo / mean_expr_healthy))
# Calculate abundance fold change > 1.5 per parameter in AM cohort
percentage_fc_increase <- table_para %>%
filter(Cohort != "Healthy") %>%
group_by(Cohort, Parameter) %>%
left_join(healthy_stats, by = "Parameter") %>%
mutate(log2_fc = log2(Parameter_val / mean_expr_healthy)) %>%
mutate(fc_1.5 = log2_fc >1.5) %>%
summarise(percentage_fc_1.5 = mean(fc_1.5, na.rm = TRUE) * 100)
# Merge stats tables
cohorts_stats <- cohorts_stats %>%
left_join(percentage_fc_increase,by = c("Cohort", "Parameter"))
# Reorder Cohorts order
cohorts_stats <- cohorts_stats %>%
mutate(Cohort = factor(Cohort, levels = c("ACM", "Myocarditis")))
# Order Parameters
list_parameter_groups <- read.xlsx(paste0(basedir,"/data/Grouping of Lumminex Marker.xlsx"))
cohorts_stats$Parameter <- factor(cohorts_stats$Parameter, levels = list_parameter_groups$Parameter)

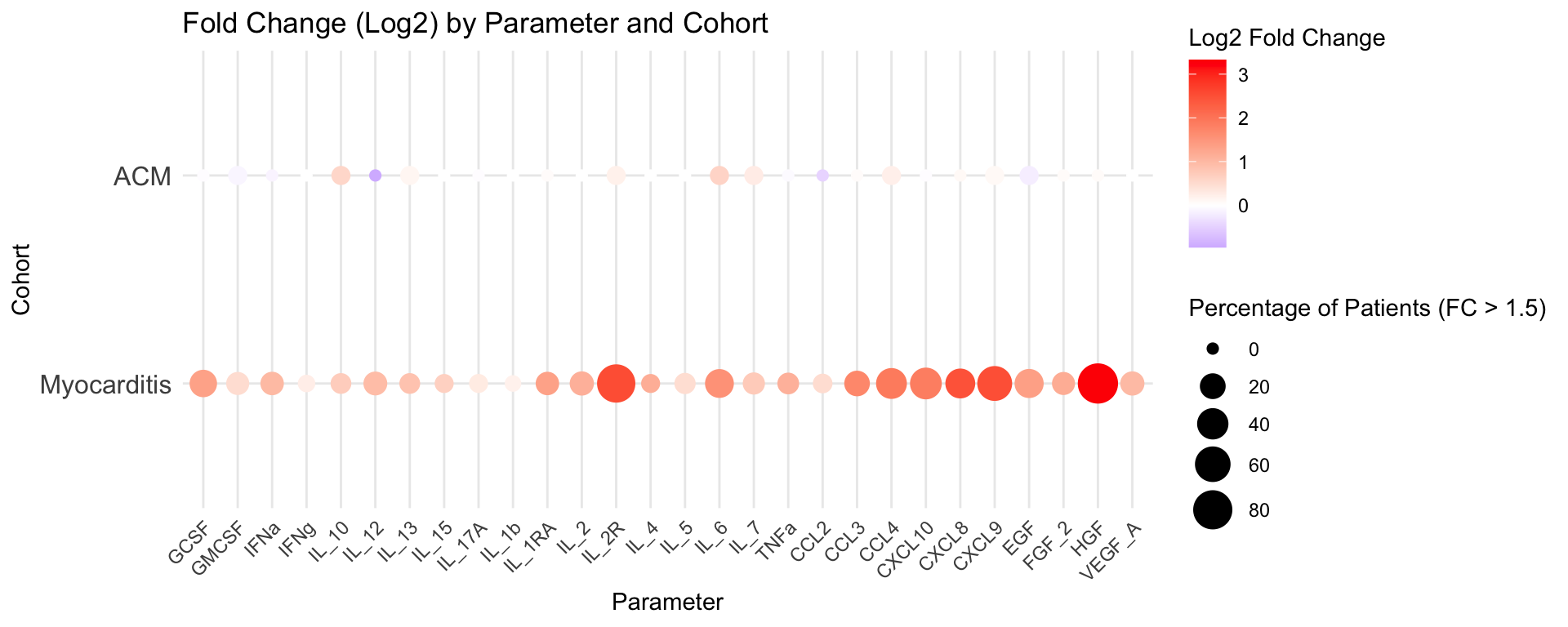

# Create the Bubble Plot
bubble_plot <- ggplot(cohorts_stats, aes(x = Parameter, y = Cohort,
size = abs(percentage_fc_1.5),
color = log2_fc)) +
geom_point(alpha = 1) +
scale_size(range = c(2, 8)) +
scale_y_discrete(limits = rev(levels(cohorts_stats$Cohort))) +
scale_color_gradient2(low = "blue", mid = "white", high = "red", midpoint = 0) +
labs(title = "Fold Change (Log2) by Parameter and Cohort",
x = "Parameter", y = "Cohort",
size = "Percentage of Patients (FC > 1.5)", color = "Log2 Fold Change") +
theme_minimal() +
theme(axis.text.x = element_text(angle = 45, hjust = 1),
axis.text.y = element_text(size = 12))
# Display the plot
print(bubble_plot)
| Version | Author | Date |
|---|---|---|
| 4c1f400 | anjo1995 | 2026-03-06 |
Data Preparation (ACM & Healthy)
# Subset
table_lum_acm_healthy <- table_lum %>%
filter (Cohort != "Myocarditis")
# Remove Columns with same value in all individuals (Variance = 0)
table_lum_acm_healthy <- table_lum_acm_healthy %>%
select_if(~ !(is.numeric(.) && var(., na.rm = TRUE) == 0))Volcano Plot (ACM & Healthy)
# Set rownames
rownames(table_lum_acm_healthy) <- table_lum_acm_healthy$Study_ID
# Calculate p-values between AM and healthy
# Create the loop.vector (all the parameter columns)
names(which(sapply(table_lum_acm_healthy, is.numeric) == TRUE)) -> parameters
# Create table for stats
table_lum_acm_healthy_stat <- data.table (Parameter = numeric(), group1 = character(),
group2 = character(), n1 = numeric(),
n2 = numeric(), statistic = numeric (),
p = numeric (), p.signif = character(), FDR = numeric())
# Create loop for calculation of stat test by parameter between cohort1 and healthy cohort
for (i in parameters)
{
# Formula to insert parameter in loop
formula = as.formula( paste(i, "Cohort", sep="~") )
stat_parameter <- table_lum_acm_healthy %>%
wilcox_test(formula = formula) %>%
add_significance() %>%
mutate(FDR = p.adjust(p, method = "BH")) %>%
rename(Parameter = .y.)
# Combine currently calculated stats with previous calculations
table_lum_acm_healthy_stat <- rbind(table_lum_acm_healthy_stat, stat_parameter)
}
# Calculate FC between AM and healthy
# Calculate Mean of parameters per group
table_lum_acm_healthy_log2 <- table_lum_acm_healthy %>%
group_by(Cohort) %>%
summarise(across(FGF_2:CXCL8, ~ mean(.x, na.rm = TRUE)))
# Transverse Data Table and set rownames
table_lum_acm_healthy_log2_t <- table_lum_acm_healthy_log2 %>%
t %>%
as.data.frame() %>%
row_to_names(1)
# Convert whole data table to numeric
table_lum_acm_healthy_log2_t <- mutate_all(table_lum_acm_healthy_log2_t,
function(x) as.numeric(as.character(x)))
# Calculate FC between healthy and cohort1
table_lum_acm_healthy_log2_t$log2_fc <- log2(table_lum_acm_healthy_log2_t$ACM /
table_lum_acm_healthy_log2_t$Healthy)
# Add p-values to data table
# Extract only Parameters and p-values
stat.test_p <- table_lum_acm_healthy_stat %>%
dplyr::select(Parameter, FDR)
# Merge data tables (log2, FC, p val)
table_lum_acm_healthy_log2_t$Parameter <- rownames(table_lum_acm_healthy_log2_t)
table_lum_acm_healthy_volcano <- merge(table_lum_acm_healthy_log2_t, stat.test_p, by = "Parameter")

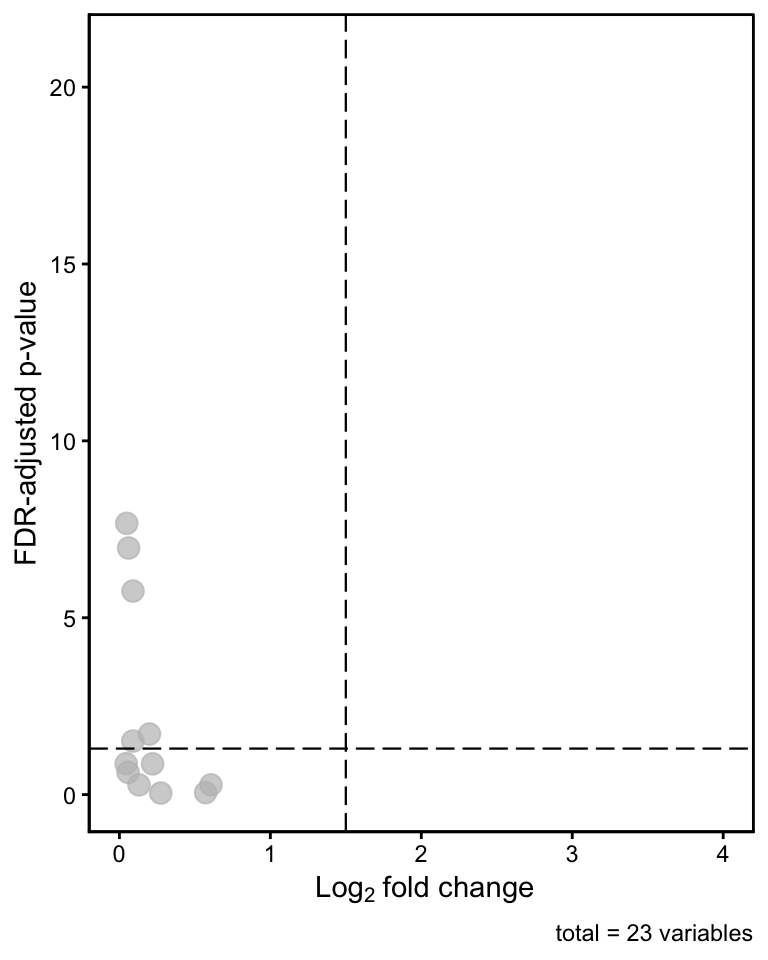

# Create Volcano Plot
# Mark parameters if FC > 1.5 = upregulated
table_lum_acm_healthy_volcano$diff_expression <- ifelse (table_lum_acm_healthy_volcano$log2_fc > 1.5,
"up", "no")
# Add new column to relabel parameters FC of > 1.5
table_lum_acm_healthy_volcano$label_para <- ifelse (table_lum_acm_healthy_volcano$log2_fc > 1.5,
table_lum_acm_healthy_volcano$Parameter, "")
plot_volcano <- EnhancedVolcano(table_lum_acm_healthy_volcano,
lab = table_lum_acm_healthy_volcano$label_para,
x = 'log2_fc', y = 'FDR',
FCcutoff = 1.5, pointSize = 3.5, labSize = 4, colAlpha = 0.7,
boxedLabels = TRUE, col = c("grey", "grey", "grey", "brown2"),
xlab = bquote(~Log[2]~ "fold change"), ylab = bquote("FDR-adjusted p-value"),
xlim = c(0, 4), ylim = c(0, 21), pCutoff = 0.05,
title = NULL, subtitle = NULL, border = 'full',
drawConnectors = TRUE,widthConnectors = 0.5, colConnectors = "brown2") +
theme_classic() +
theme(panel.grid = element_blank(),
panel.border = element_rect(colour = "black", fill = NA,),
legend.position = "none")
print( plot_volcano)
| Version | Author | Date |
|---|---|---|
| 4c1f400 | anjo1995 | 2026-03-06 |
Heatmap Selected Parameters
# Select preserved cytokines
table_lum <- table_lum %>%
dplyr::select(Study_ID, Cohort, HGF, IL_2R, CXCL9, CXCL10, CXCL8, IL_6, CCL3, CCL4)
# Name Rownames with study ID and remove Study ID and Cohort column
table_lum_01 <- subset(table_lum, select = -c(Study_ID, Cohort))
# Convert Data Table to Data Frame
table_lum_01 <- as.data.frame(table_lum_01)
# Transpose Data Table
table_lum_t <- t(table_lum_01)
## Column Annotations
# Create list with Study_ID & Cohort
list_cohort_group <- subset(table_lum, select= c(Study_ID, Cohort))
rownames(list_cohort_group) <- list_cohort_group$Study_ID
list_cohort_group <- subset(list_cohort_group, select= -c(Study_ID))
## Row Annotations
# Create list with Parameters
list_parameter_groups <- read.xlsx(paste0(basedir,"/data/Grouping of Lumminex Marker.xlsx"))
# Create list with Columns of data table
list_parameter_datatable <- as.data.frame(rownames(table_lum_t))
colnames(list_parameter_datatable) <- "Parameter"
# Merge to match the order of parameters
list_parameter_groups_01 <- merge(list_parameter_groups, list_parameter_datatable, by.y = "Parameter")
# Define the predefined order for Group
group_order <- c("Cytokines", "Chemokines", "Tissue Cytokines")
# Order list based on predefined order
selected_markers <- c("HGF","IL_2R", "CXCL9", "CXCL10", "CXCL8", "IL_6", "CCL3", "CCL4")
# Filter and order
list_parameter_groups_02 <- list_parameter_groups_01 %>%
filter(Parameter %in% selected_markers) %>%
mutate(Group = factor(Group, levels = group_order),
Parameter = factor(Parameter, levels = selected_markers)) %>%
arrange(Parameter)
# Extract ordered parameter vector
list_parameter_groups_03 <- as.character(list_parameter_groups_02$Parameter)
# Reorder Data Table based on the new ordered list
table_lum_t_ordered <- as.data.frame(table_lum_t)
# Convert it back to matrix
table_lum_t_ordered <- as.matrix(table_lum_t_ordered)
# Log Transform
table_lum_t_ordered <- log2(table_lum_t_ordered)
# Scale
table_lum_t_ordered <- t(apply(table_lum_t_ordered, 1, scale))
# Create Cohort Label Colors of Annotations in heatmap
ann_colors <- list(Cohort = c("Myocarditis" = "darkred", "Healthy" = "grey", "ACM" = "brown2"),
Group = c("Cytokines" = "darkseagreen", "Chemokines" = "lightblue", "Tissue Cytokines" = "mediumpurple3"))
# Column Annotation
col_anno <- HeatmapAnnotation(df = list_cohort_group, col = ann_colors)
# Row Annotation
# Prepare row annotations as a data frame
row_anno <- rowAnnotation(Group = list_parameter_groups_02$Group,
col = list(Group = c("Cytokines" = "darkseagreen",
"Chemokines" = "lightblue",
"Tissue Cytokines" = "mediumpurple3")))

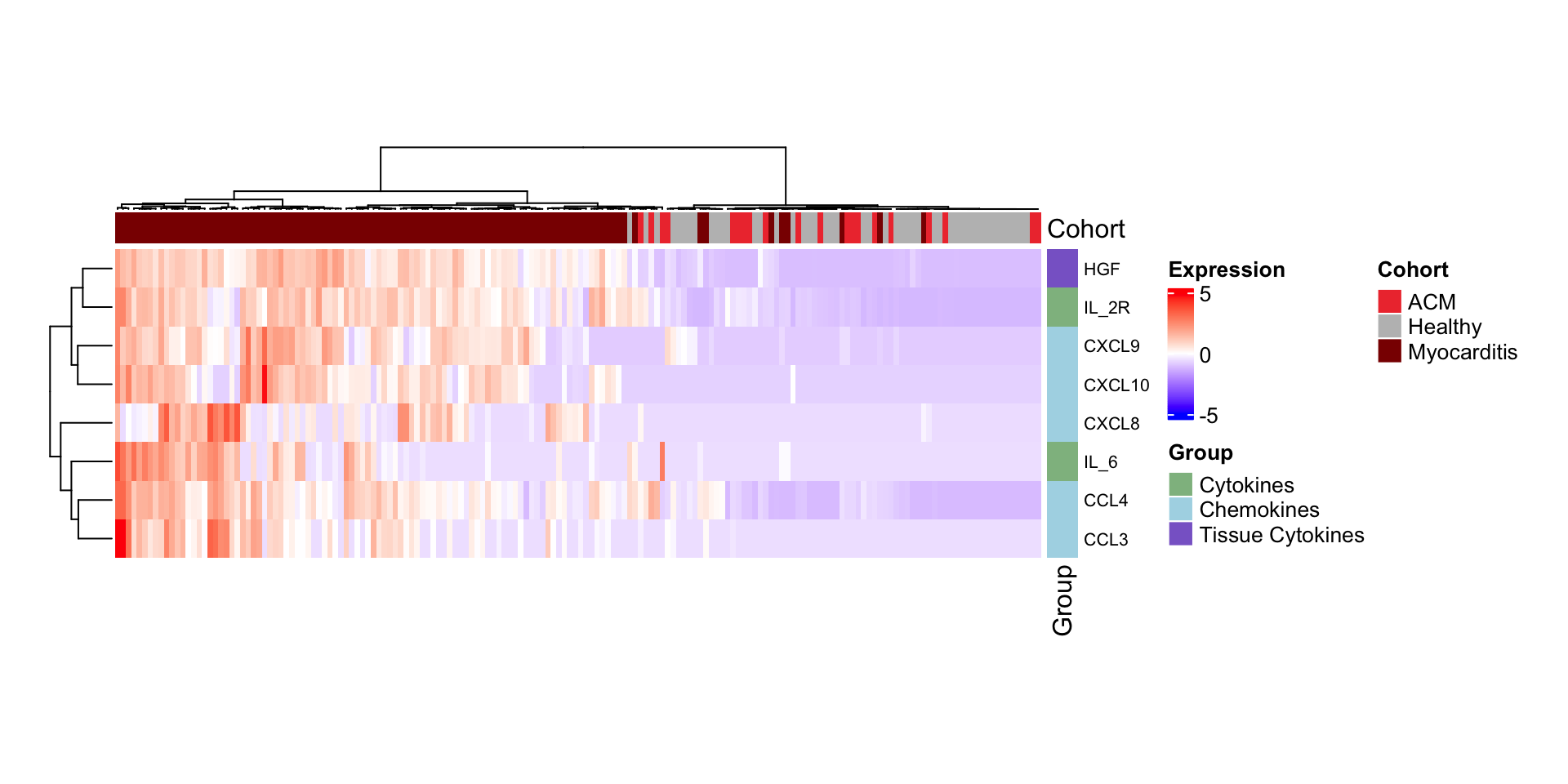

# Create Heatmap
heatmap_lum_sel <- Heatmap(table_lum_t_ordered,
name = "Expression",
col = circlize::colorRamp2(c(-5, 0, 5), c("blue", "white", "red")),
cluster_rows = TRUE,
cluster_columns = TRUE,
clustering_method_columns = "ward.D",
show_column_names = TRUE,
column_names_gp = gpar(fontsize = 8),
row_names_gp = gpar(fontsize = 8),
width = unit(15, "cm"), height = unit(5, "cm"),
top_annotation = col_anno,
right_annotation = row_anno)
# Draw Heatmap
show(heatmap_lum_sel)
| Version | Author | Date |
|---|---|---|
| 4c1f400 | anjo1995 | 2026-03-06 |

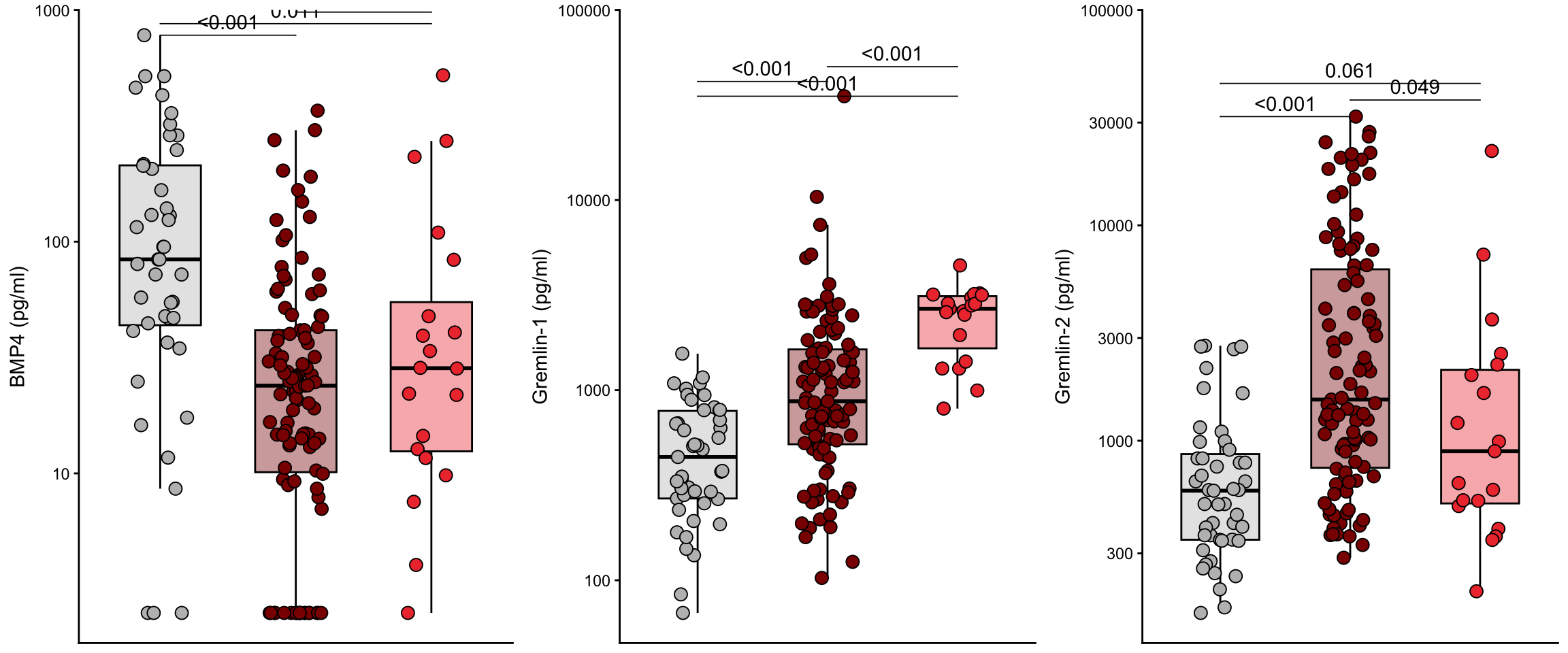

BMP4/Gremlin axis
# Subset
table_bmp4 <- table_all_myo_acm_healthy %>%
dplyr::select(Study_ID, Cohort, BMP4, Grem_1, Grem_2)
# Prepare data table
table_para <- table_bmp4 %>%
pivot_longer(cols = where(is.numeric),
names_to = "Parameter",
values_to = "Parameter_val")
# Set Cohort order
table_para$Cohort <- factor(table_para$Cohort,
levels = c("Healthy", "Myocarditis", "ACM"))
# Calculate Stats
# Kruskal–Wallis test
stat.kruskal <- table_para %>%
group_by(Parameter) %>%
kruskal_test(Parameter_val ~ Cohort) %>%
add_significance()
# Dunn post hoc test
stat.dunn <- table_para %>%
group_by(Parameter) %>%
dunn_test(Parameter_val ~ Cohort, p.adjust.method = "BH")
# Calculate max y for positioning p-values
max_y <- table_para %>%
group_by(Parameter) %>%
summarise(max_val = max(Parameter_val, na.rm = TRUE))
# Get min value per parameter (for y limits)
min_y <- table_para %>%
group_by(Parameter) %>%
summarise(min_val = min(Parameter_val, na.rm = TRUE))
# Combine with max_y info for plotting
stat.test <- stat.dunn %>%
left_join(max_y, by = "Parameter") %>%
mutate(y.position = max_val * 1) %>%
group_by(Parameter) %>%
arrange(p.adj)
# Create the loop to create a plot
param <- c("BMP4", "Grem_1","Grem_2")
y_settings <- list(BMP4 = list(limits = c(NA, 1000), breaks = c(10, 100, 1000)),
Grem_1 = list(limits = c(NA, 100000), breaks = c(10, 100, 1000, 10000, 100000)),
Grem_2 = list(limits = c(NA, 100000), breaks = c(300, 1000, 3000, 10000, 30000, 100000)))
# Define axis labels for each biomarker
biomarker_labels <- c("BMP4 (pg/ml)", "Gremlin-1 (pg/ml)", "Gremlin-2 (pg/ml)")
names(biomarker_labels) <- param
# Create a list for all plots created in the loop
plots_list <- list()
for (param in param)
{
# Filter for the data
temp_data <- table_para %>%
filter(Parameter == param )
temp_stat_test <- stat.test %>%
filter(Parameter == param ) %>%
mutate(p_adj_label = ifelse(p.adj < 0.001, "<0.001", sprintf("%.3f", p.adj)))
# Axis settings
y_lim <- y_settings[[param ]]$limits
y_brk <- y_settings[[param ]]$breaks
plot_lum <- ggplot(temp_data, aes(x = Cohort, y = Parameter_val)) +
geom_boxplot(aes(fill = Cohort), color = "black", outlier.shape = NA,
width = 0.6, alpha = 0.4) +
geom_point(shape = 21, size = 3, color = "black", aes(fill = Cohort),
position = position_jitter(width = 0.2, height = 0)) +
scale_fill_manual(values = c("Healthy" = "grey",
"Myocarditis" = "darkred",
"ACM" = "brown2")) +
stat_pvalue_manual(temp_stat_test, label = "p_adj_label",
y.position = log10(temp_stat_test$y.position),
step.increase = 0.02, tip.length = 0) +
scale_y_log10(labels = function(x) format(x, scientific = FALSE, trim = TRUE),
limits = y_lim, breaks = y_brk, expand = expansion(mult = c(0.05, 0))) +
labs(x = NULL, y = biomarker_labels[[param]]) +
theme_classic() +
theme(axis.title.x = element_blank(),
axis.text.x = element_blank(),
axis.ticks.x = element_blank(),
legend.position = "none")
plots_list[[param]] <- plot_lum
}
# Combine plots to a panel
panel <- ggarrange(plotlist = plots_list,
ncol = 3, nrow = 1)
print(panel)
session info
sessionInfo()R version 4.4.3 (2025-02-28)
Platform: aarch64-apple-darwin20
Running under: macOS 26.3
Matrix products: default
BLAS: /Library/Frameworks/R.framework/Versions/4.4-arm64/Resources/lib/libRblas.0.dylib
LAPACK: /Library/Frameworks/R.framework/Versions/4.4-arm64/Resources/lib/libRlapack.dylib; LAPACK version 3.12.0
locale:
[1] en_US.UTF-8/en_US.UTF-8/en_US.UTF-8/C/en_US.UTF-8/en_US.UTF-8
time zone: Europe/Zurich
tzcode source: internal
attached base packages:
[1] grid stats graphics grDevices utils datasets methods
[8] base
other attached packages:
[1] ImmunoLogic_0.0.0.9000 Seurat_5.3.1 SeuratObject_5.2.0
[4] sp_2.2-0 kernlab_0.9-33 dbscan_1.2-0
[7] umap_0.2.10.0 Rtsne_0.17 cluster_2.1.8
[10] factoextra_1.0.7 randomForest_4.7-1.2 pROC_1.19.0.1
[13] mice_3.18.0 caret_7.0-1 lattice_0.22-6
[16] drc_3.0-1 logistf_1.26.1 glmnet_4.1-10
[19] Matrix_1.7-2 broom_1.0.11 MuMIn_1.48.11
[22] Hmisc_5.2-3 car_3.1-3 carData_3.0-5
[25] multcomp_1.4-28 TH.data_1.1-4 MASS_7.3-65
[28] survival_3.8-3 mvtnorm_1.3-3 rstatix_0.7.3
[31] ggpattern_1.2.1 gridExtra_2.3 cowplot_1.2.0
[34] patchwork_1.3.2 plotly_4.11.0 EnhancedVolcano_1.24.0
[37] RColorBrewer_1.1-3 circlize_0.4.16 ComplexHeatmap_2.22.0
[40] pheatmap_1.0.12 corrplot_0.95 ggcorrplot_0.1.4.1
[43] ggbeeswarm_0.7.2 ggrepel_0.9.6 ggpubr_0.6.2
[46] readxl_1.4.5 writexl_1.5.0 openxlsx_4.2.5.2
[49] gtsummary_2.4.0 flextable_0.9.6 tableone_0.13.2
[52] table1_1.4.3 scales_1.4.0 here_1.0.2
[55] janitor_2.2.0 magrittr_2.0.4 data.table_1.17.8
[58] lubridate_1.9.4 forcats_1.0.1 stringr_1.6.0
[61] dplyr_1.1.4 purrr_1.2.0 readr_2.1.6
[64] tidyr_1.3.1 tibble_3.3.0 ggplot2_4.0.1
[67] tidyverse_2.0.0
loaded via a namespace (and not attached):
[1] IRanges_2.40.1 nnet_7.3-20 goftest_1.2-3
[4] vctrs_0.6.5 spatstat.random_3.4-3 digest_0.6.39
[7] png_0.1-8 shape_1.4.6.1 git2r_0.36.2
[10] alabama_2023.1.0 deldir_2.0-4 httpcode_0.3.0
[13] parallelly_1.45.1 fontLiberation_0.1.0 reshape2_1.4.5
[16] httpuv_1.6.16 foreach_1.5.2 BiocGenerics_0.52.0
[19] withr_3.0.2 xfun_0.54 crul_1.4.2
[22] emmeans_1.10.4 systemfonts_1.3.1 ragg_1.5.0
[25] zoo_1.8-14 GlobalOptions_0.1.3 gtools_3.9.5
[28] pbapply_1.7-4 Formula_1.2-5 promises_1.5.0
[31] otel_0.2.0 httr_1.4.7 globals_0.18.0
[34] fitdistrplus_1.2-4 rstudioapi_0.17.1 pan_1.9
[37] miniUI_0.1.2 generics_0.1.4 base64enc_0.1-3
[40] curl_7.0.0 S4Vectors_0.44.0 mitools_2.4
[43] polyclip_1.10-7 quadprog_1.5-8 xtable_1.8-4
[46] doParallel_1.0.17 evaluate_1.0.5 hms_1.1.4
[49] irlba_2.3.5.1 colorspace_2.1-2 polynom_1.4-1
[52] ROCR_1.0-11 reticulate_1.44.1 spatstat.data_3.1-9
[55] lmtest_0.9-40 snakecase_0.11.1 later_1.4.4
[58] spatstat.geom_3.6-1 future.apply_1.20.0 scattermore_1.2
[61] survey_4.4-2 matrixStats_1.5.0 RcppAnnoy_0.0.22
[64] class_7.3-23 pillar_1.11.1 nlme_3.1-167
[67] iterators_1.0.14 compiler_4.4.3 RSpectra_0.16-2
[70] stringi_1.8.7 gower_1.0.2 jomo_2.7-6
[73] tensor_1.5.1 minqa_1.2.8 plyr_1.8.9
[76] crayon_1.5.3 abind_1.4-8 orthopolynom_1.0-6.1
[79] sandwich_3.1-1 whisker_0.4.1 codetools_0.2-20
[82] textshaping_1.0.4 basefun_1.2-4 recipes_1.3.1
[85] openssl_2.3.4 bslib_0.9.0 GetoptLong_1.0.5
[88] mime_0.13 splines_4.4.3 Rcpp_1.1.0
[91] fastDummies_1.7.5 coneproj_1.20 variables_1.1-2
[94] cellranger_1.1.0 knitr_1.50 clue_0.3-66
[97] lme4_1.1-38 fs_1.6.6 listenv_0.10.0
[100] checkmate_2.3.3 Rdpack_2.6.4 ggsignif_0.6.4
[103] estimability_1.5.1 tzdb_0.5.0 pkgconfig_2.0.3
[106] tools_4.4.3 cachem_1.1.0 rbibutils_2.4
[109] numDeriv_2016.8-1.1 viridisLite_0.4.2 DBI_1.2.3
[112] fastmap_1.2.0 rmarkdown_2.30 ica_1.0-3
[115] tram_1.2-4 sass_0.4.10 officer_0.6.6
[118] coda_0.19-4.1 dotCall64_1.2 RANN_2.6.2
[121] rpart_4.1.24 farver_2.1.2 reformulas_0.4.2
[124] mgcv_1.9-1 yaml_2.3.11 workflowr_1.7.2
[127] foreign_0.8-88 cli_3.6.5 stats4_4.4.3
[130] lifecycle_1.0.4 uwot_0.2.4 askpass_1.2.1
[133] lava_1.8.0 backports_1.5.0 mlt_1.6-6
[136] timechange_0.3.0 gtable_0.3.6 rjson_0.2.23
[139] ggridges_0.5.7 progressr_0.18.0 parallel_4.4.3
[142] jsonlite_2.0.0 RcppHNSW_0.6.0 mitml_0.4-5
[145] qrng_0.0-10 spatstat.utils_3.2-0 zip_2.3.1
[148] jquerylib_0.1.4 spatstat.univar_3.1-5 timeDate_4051.111
[151] lazyeval_0.2.2 shiny_1.12.0 htmltools_0.5.9
[154] sctransform_0.4.2 glue_1.8.0 gfonts_0.2.0
[157] BB_2019.10-1 spam_2.11-1 gdtools_0.3.7
[160] rprojroot_2.1.1 boot_1.3-31 igraph_2.2.1
[163] R6_2.6.1 labeling_0.4.3 ipred_0.9-15
[166] nloptr_2.2.1 tidyselect_1.2.1 vipor_0.4.7
[169] plotrix_3.8-4 htmlTable_2.4.3 operator.tools_1.6.3
[172] xml2_1.5.1 fontBitstreamVera_0.1.1 future_1.68.0
[175] ModelMetrics_1.2.2.2 KernSmooth_2.23-26 S7_0.2.1
[178] fontquiver_0.2.1 htmlwidgets_1.6.4 rlang_1.1.6
[181] spatstat.sparse_3.1-0 spatstat.explore_3.6-0 uuid_1.2-1
[184] formula.tools_1.7.1 hardhat_1.4.1 beeswarm_0.4.0
[187] prodlim_2023.08.28 date()[1] "Fri Mar 6 19:41:08 2026"
sessionInfo()R version 4.4.3 (2025-02-28)
Platform: aarch64-apple-darwin20
Running under: macOS 26.3
Matrix products: default
BLAS: /Library/Frameworks/R.framework/Versions/4.4-arm64/Resources/lib/libRblas.0.dylib
LAPACK: /Library/Frameworks/R.framework/Versions/4.4-arm64/Resources/lib/libRlapack.dylib; LAPACK version 3.12.0
locale:
[1] en_US.UTF-8/en_US.UTF-8/en_US.UTF-8/C/en_US.UTF-8/en_US.UTF-8
time zone: Europe/Zurich
tzcode source: internal
attached base packages:
[1] grid stats graphics grDevices utils datasets methods
[8] base
other attached packages:
[1] ImmunoLogic_0.0.0.9000 Seurat_5.3.1 SeuratObject_5.2.0
[4] sp_2.2-0 kernlab_0.9-33 dbscan_1.2-0
[7] umap_0.2.10.0 Rtsne_0.17 cluster_2.1.8
[10] factoextra_1.0.7 randomForest_4.7-1.2 pROC_1.19.0.1
[13] mice_3.18.0 caret_7.0-1 lattice_0.22-6
[16] drc_3.0-1 logistf_1.26.1 glmnet_4.1-10
[19] Matrix_1.7-2 broom_1.0.11 MuMIn_1.48.11
[22] Hmisc_5.2-3 car_3.1-3 carData_3.0-5
[25] multcomp_1.4-28 TH.data_1.1-4 MASS_7.3-65
[28] survival_3.8-3 mvtnorm_1.3-3 rstatix_0.7.3
[31] ggpattern_1.2.1 gridExtra_2.3 cowplot_1.2.0
[34] patchwork_1.3.2 plotly_4.11.0 EnhancedVolcano_1.24.0
[37] RColorBrewer_1.1-3 circlize_0.4.16 ComplexHeatmap_2.22.0
[40] pheatmap_1.0.12 corrplot_0.95 ggcorrplot_0.1.4.1
[43] ggbeeswarm_0.7.2 ggrepel_0.9.6 ggpubr_0.6.2
[46] readxl_1.4.5 writexl_1.5.0 openxlsx_4.2.5.2
[49] gtsummary_2.4.0 flextable_0.9.6 tableone_0.13.2
[52] table1_1.4.3 scales_1.4.0 here_1.0.2
[55] janitor_2.2.0 magrittr_2.0.4 data.table_1.17.8
[58] lubridate_1.9.4 forcats_1.0.1 stringr_1.6.0
[61] dplyr_1.1.4 purrr_1.2.0 readr_2.1.6
[64] tidyr_1.3.1 tibble_3.3.0 ggplot2_4.0.1
[67] tidyverse_2.0.0
loaded via a namespace (and not attached):
[1] IRanges_2.40.1 nnet_7.3-20 goftest_1.2-3
[4] vctrs_0.6.5 spatstat.random_3.4-3 digest_0.6.39
[7] png_0.1-8 shape_1.4.6.1 git2r_0.36.2
[10] alabama_2023.1.0 deldir_2.0-4 httpcode_0.3.0
[13] parallelly_1.45.1 fontLiberation_0.1.0 reshape2_1.4.5
[16] httpuv_1.6.16 foreach_1.5.2 BiocGenerics_0.52.0
[19] withr_3.0.2 xfun_0.54 crul_1.4.2
[22] emmeans_1.10.4 systemfonts_1.3.1 ragg_1.5.0
[25] zoo_1.8-14 GlobalOptions_0.1.3 gtools_3.9.5
[28] pbapply_1.7-4 Formula_1.2-5 promises_1.5.0
[31] otel_0.2.0 httr_1.4.7 globals_0.18.0
[34] fitdistrplus_1.2-4 rstudioapi_0.17.1 pan_1.9
[37] miniUI_0.1.2 generics_0.1.4 base64enc_0.1-3
[40] curl_7.0.0 S4Vectors_0.44.0 mitools_2.4
[43] polyclip_1.10-7 quadprog_1.5-8 xtable_1.8-4
[46] doParallel_1.0.17 evaluate_1.0.5 hms_1.1.4
[49] irlba_2.3.5.1 colorspace_2.1-2 polynom_1.4-1
[52] ROCR_1.0-11 reticulate_1.44.1 spatstat.data_3.1-9
[55] lmtest_0.9-40 snakecase_0.11.1 later_1.4.4
[58] spatstat.geom_3.6-1 future.apply_1.20.0 scattermore_1.2
[61] survey_4.4-2 matrixStats_1.5.0 RcppAnnoy_0.0.22
[64] class_7.3-23 pillar_1.11.1 nlme_3.1-167
[67] iterators_1.0.14 compiler_4.4.3 RSpectra_0.16-2
[70] stringi_1.8.7 gower_1.0.2 jomo_2.7-6
[73] tensor_1.5.1 minqa_1.2.8 plyr_1.8.9
[76] crayon_1.5.3 abind_1.4-8 orthopolynom_1.0-6.1
[79] sandwich_3.1-1 whisker_0.4.1 codetools_0.2-20
[82] textshaping_1.0.4 basefun_1.2-4 recipes_1.3.1
[85] openssl_2.3.4 bslib_0.9.0 GetoptLong_1.0.5
[88] mime_0.13 splines_4.4.3 Rcpp_1.1.0
[91] fastDummies_1.7.5 coneproj_1.20 variables_1.1-2
[94] cellranger_1.1.0 knitr_1.50 clue_0.3-66
[97] lme4_1.1-38 fs_1.6.6 listenv_0.10.0
[100] checkmate_2.3.3 Rdpack_2.6.4 ggsignif_0.6.4
[103] estimability_1.5.1 tzdb_0.5.0 pkgconfig_2.0.3
[106] tools_4.4.3 cachem_1.1.0 rbibutils_2.4
[109] numDeriv_2016.8-1.1 viridisLite_0.4.2 DBI_1.2.3
[112] fastmap_1.2.0 rmarkdown_2.30 ica_1.0-3
[115] tram_1.2-4 sass_0.4.10 officer_0.6.6
[118] coda_0.19-4.1 dotCall64_1.2 RANN_2.6.2
[121] rpart_4.1.24 farver_2.1.2 reformulas_0.4.2
[124] mgcv_1.9-1 yaml_2.3.11 workflowr_1.7.2
[127] foreign_0.8-88 cli_3.6.5 stats4_4.4.3
[130] lifecycle_1.0.4 uwot_0.2.4 askpass_1.2.1
[133] lava_1.8.0 backports_1.5.0 mlt_1.6-6
[136] timechange_0.3.0 gtable_0.3.6 rjson_0.2.23
[139] ggridges_0.5.7 progressr_0.18.0 parallel_4.4.3
[142] jsonlite_2.0.0 RcppHNSW_0.6.0 mitml_0.4-5
[145] qrng_0.0-10 spatstat.utils_3.2-0 zip_2.3.1
[148] jquerylib_0.1.4 spatstat.univar_3.1-5 timeDate_4051.111
[151] lazyeval_0.2.2 shiny_1.12.0 htmltools_0.5.9
[154] sctransform_0.4.2 glue_1.8.0 gfonts_0.2.0
[157] BB_2019.10-1 spam_2.11-1 gdtools_0.3.7
[160] rprojroot_2.1.1 boot_1.3-31 igraph_2.2.1
[163] R6_2.6.1 labeling_0.4.3 ipred_0.9-15
[166] nloptr_2.2.1 tidyselect_1.2.1 vipor_0.4.7
[169] plotrix_3.8-4 htmlTable_2.4.3 operator.tools_1.6.3
[172] xml2_1.5.1 fontBitstreamVera_0.1.1 future_1.68.0
[175] ModelMetrics_1.2.2.2 KernSmooth_2.23-26 S7_0.2.1
[178] fontquiver_0.2.1 htmlwidgets_1.6.4 rlang_1.1.6
[181] spatstat.sparse_3.1-0 spatstat.explore_3.6-0 uuid_1.2-1
[184] formula.tools_1.7.1 hardhat_1.4.1 beeswarm_0.4.0
[187] prodlim_2023.08.28
